22X47 Modern House Design

4,100.00

4 Bedrooms| Drawing/Living Room| Dinning Area |  Kitchen
1035 sq. ft. area
North Facing

4,100.00
4,100.00
4,100.00
SKU: TX107G Categories: , ,

This is a modern affordable house design which has a Build up area of  1035 sq. ft.
and North Facing House design.

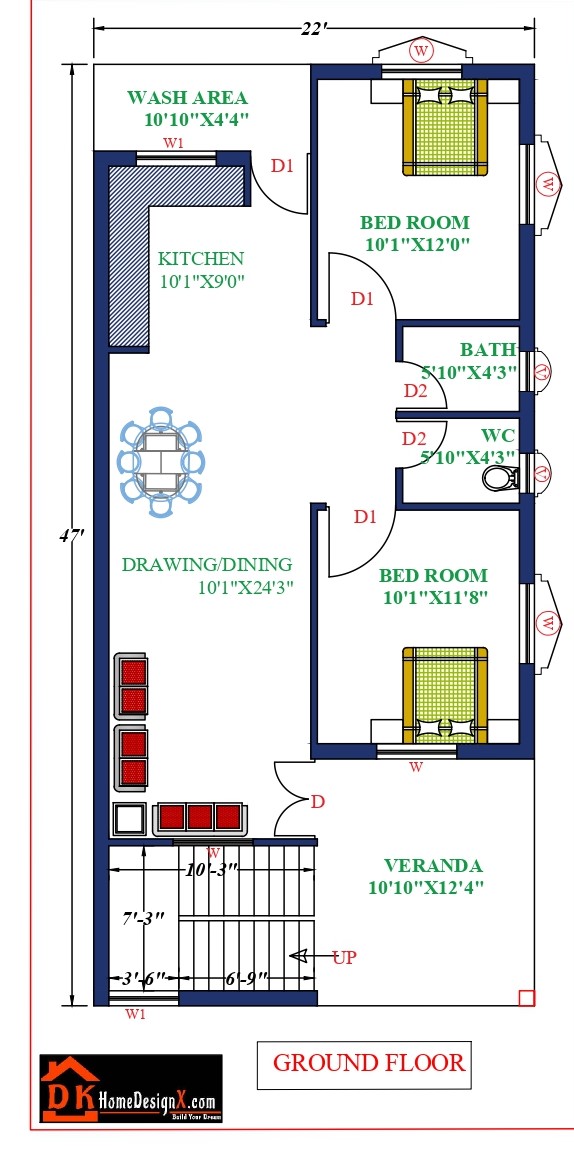

Ground Floor


2 Bedrooms | Drawing/Living Room| Dinning Area | 1 Kitchen

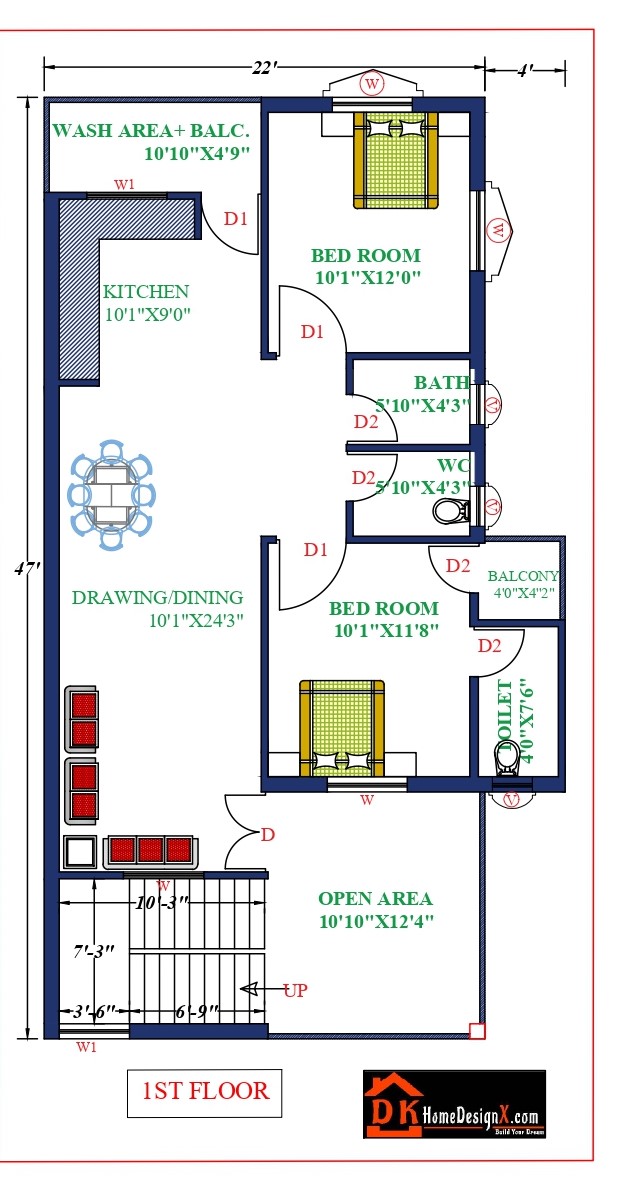

First Floor


2 Bedrooms | Drawing/Living Room | Dinning Area | 1 Kitchen


What will you get in this package?

  • 2 views of 3D Elevations
  • 2D Floor Plan
  • Column Layout & Foundation Details
  • Tie Beam Layout & Reinforcement Details
  • Roof Beam Layout & Reinforcement Details
  • 2D Front View for Site Working
  • Section View
  • Stair, Slab Design and Reinforcement Details
