25X35 Affordable House Design

4,400.00

7 Bedrooms | Drawing/Living Room | Dinning Area |  Kitchen
875 sq. ft. area
North Facing

SKU: TX231 Category:

This is a modern affordable house design which has a Build up area of  875 sq. ft.
and North Facing House design.

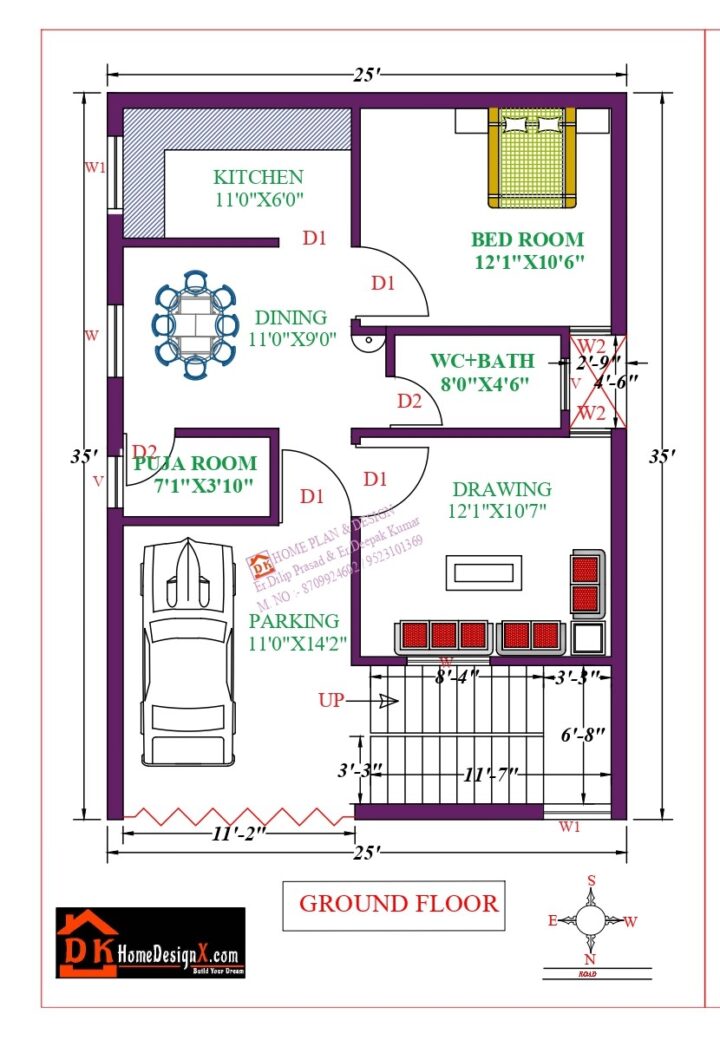

Ground Floor

1 Bedroom | Drawing/Living Room| Kitchen | Parking Area

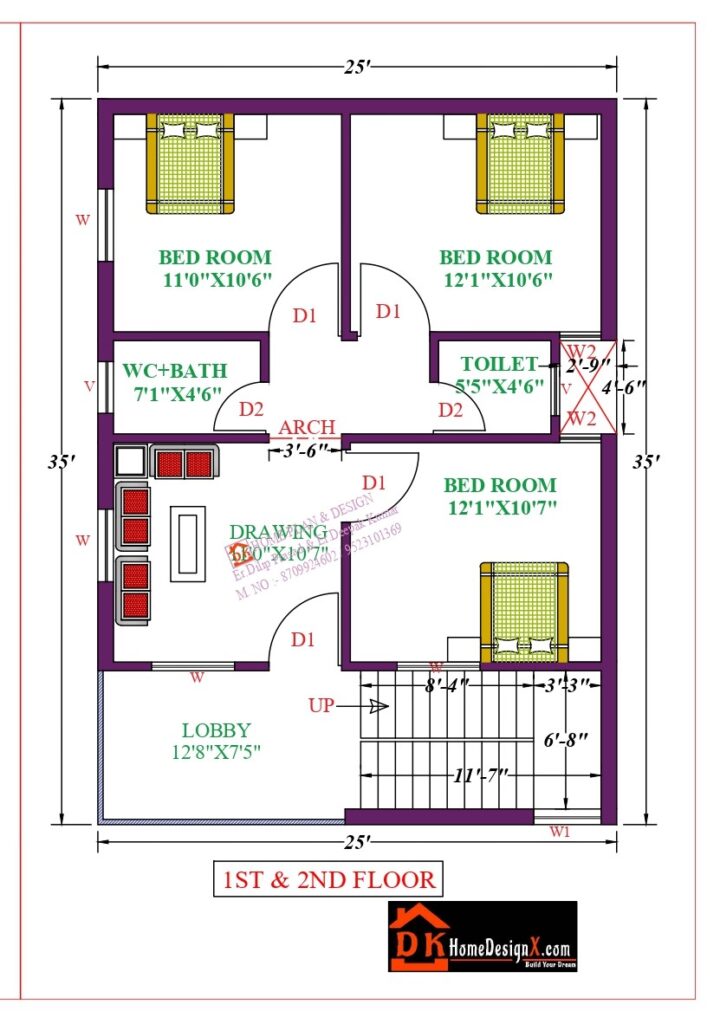

First Floor

3 Bedrooms| Drawing/Living Room | Open Area


Second Floor


3 Bedrooms| Drawing/Living Room | Open Area


What will you get in this package?

  • 2D Floor Plan
  • Column Layout with Foundation Details
  • Tie/Plinth Beam Layout & Reinforcement Details
  • Lintel Beam Layout
  • Roof Beam Layout & Reinforcement Details
  • Slab Design
  • 2D Front Elevation for Site Working
  • Section for stair details
  • Complete structure with complete reinforcement details
  • Door-Window Schedule
  • Septic tank details
  • Specification Notes
