30X34 Affordable House Design

2,500.00

3 Bedrooms  | Drawing/Dinning Room   | Kitchen |
1020 sq. ft. area
North Facing

SKU: TX254 Category:

This is a modern affordable house design which has a Build up area of  1020 sq. ft.
and North Facing House design.

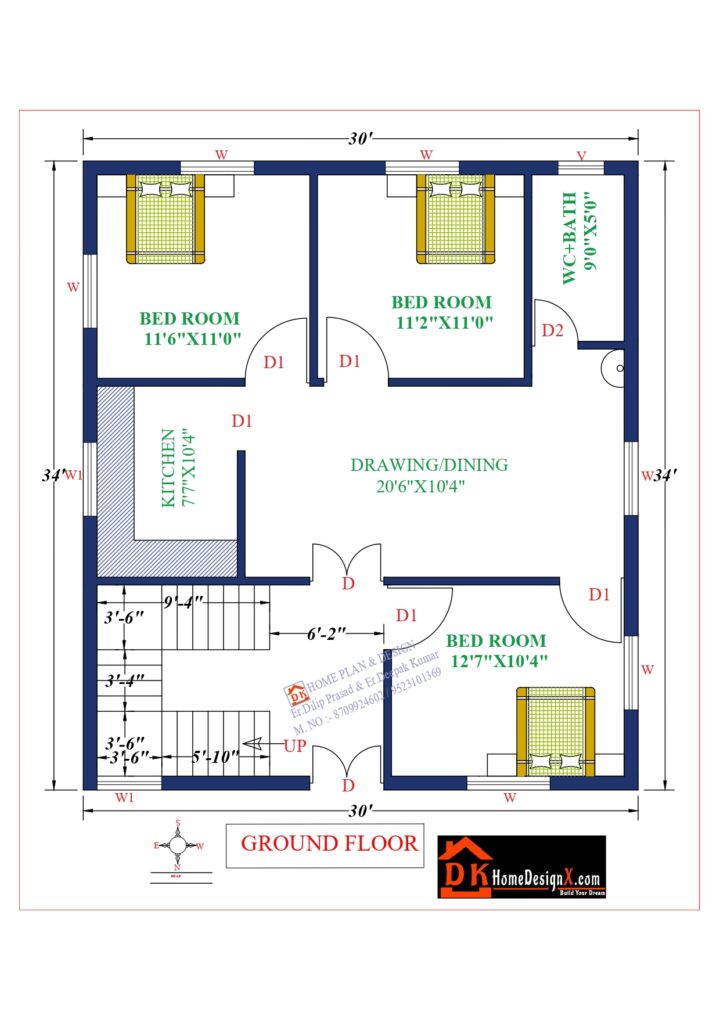

Ground Floor


3 Bedrooms  | Drawing/Dinning Room   | Kitchen |


What will you get in this package?

  • 2D Floor Plan
  • Column Layout with Foundation Details
  • Tie/Plinth Beam Layout & Reinforcement Details
  • Lintel Beam Layout
  • Roof Beam Layout & Reinforcement Details
  • Slab Design
  • 2D Front Elevation for Site Working
  • Section for stair details
  • Complete structure with complete reinforcement details
  • Door-Window Schedule
  • Septic tank details
  • Specification Notes
