33X46 Affordable House Design

3,200.00

7 Bedrooms | Drawing/Living Room | Dinning Area |  Kitchen
1520 sq. ft. area
West Facing

SKU: TX201 Category:

This is a modern affordable house design which has a Build up area of  1520 sq. ft.
and West Facing House design.

Ground Floor

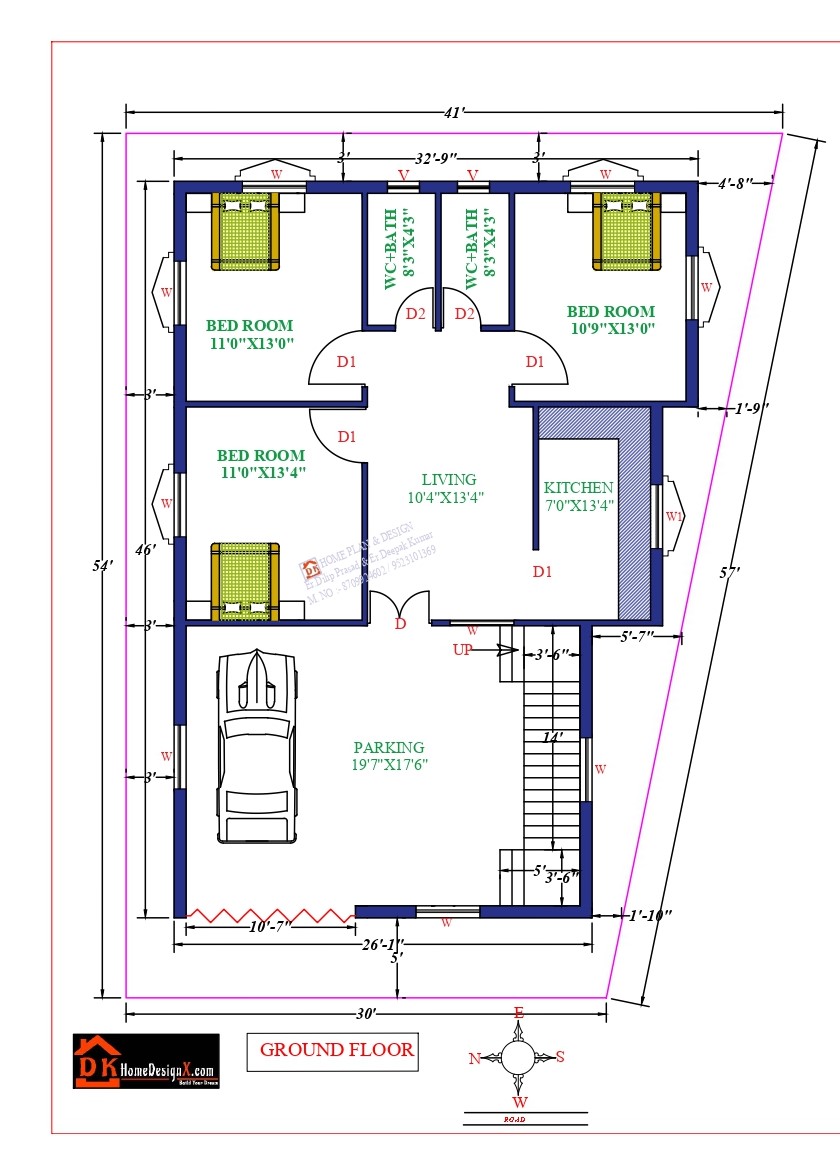

3 Bedrooms | Drawing/Living Room| Dinning Area | Kitchen


First Floor

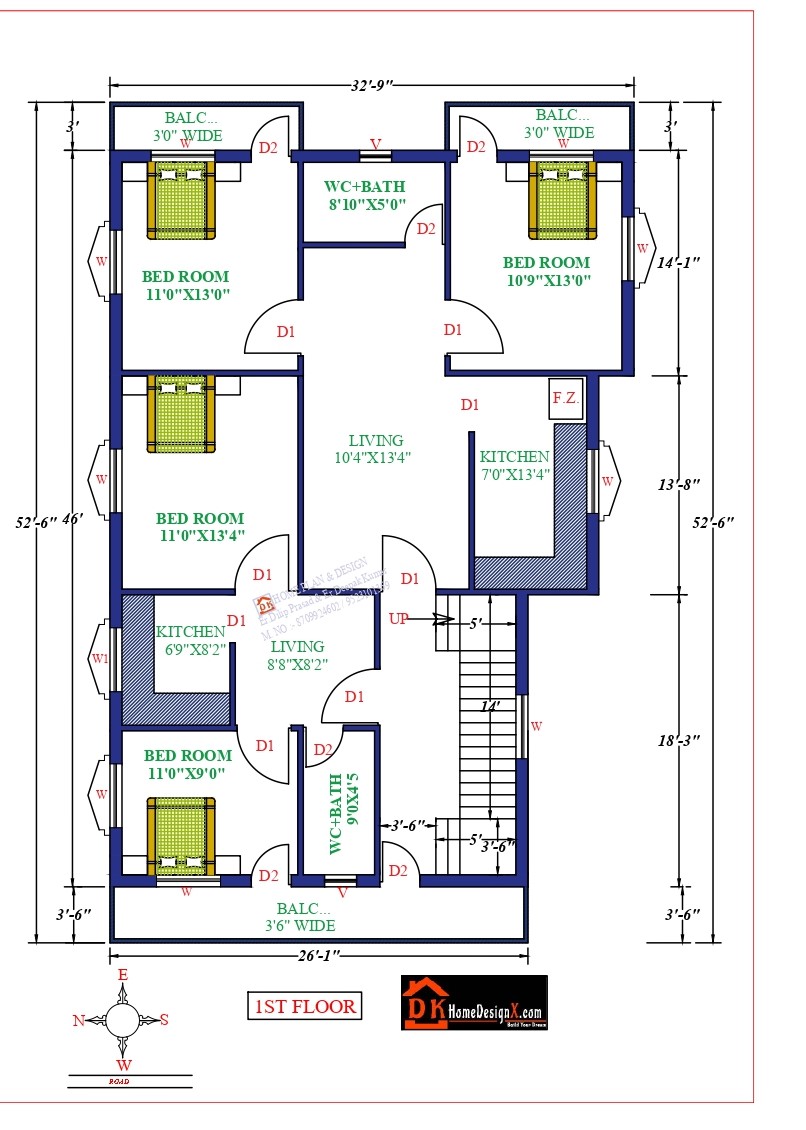

4 Bedrooms | Drawing/Living Room| Dinning Area |  2 Kitchen


What will you get in this package?

  • 2D Floor Plan
  • Column Layout with Foundation Details
  • Tie/Plinth Beam Layout & Reinforcement Details
  • Lintel Beam Layout
  • Roof Beam Layout & Reinforcement Details
  • Slab Design
  • 2D Front Elevation for Site Working
  • Section for stair details
  • Complete structure with complete reinforcement details
  • Door-Window Schedule
  • Septic tank details
  • Specification Notes
