38X103 Commercial House Design

This is a commercial house design which has a Buildup area of  3910 sq ft.
and South-East Facing House design.

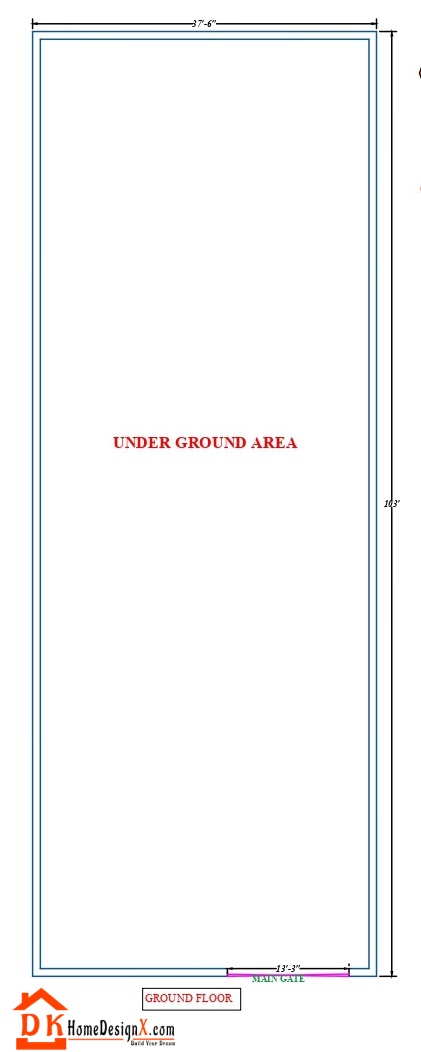

Ground Floor

---

Open Area

---

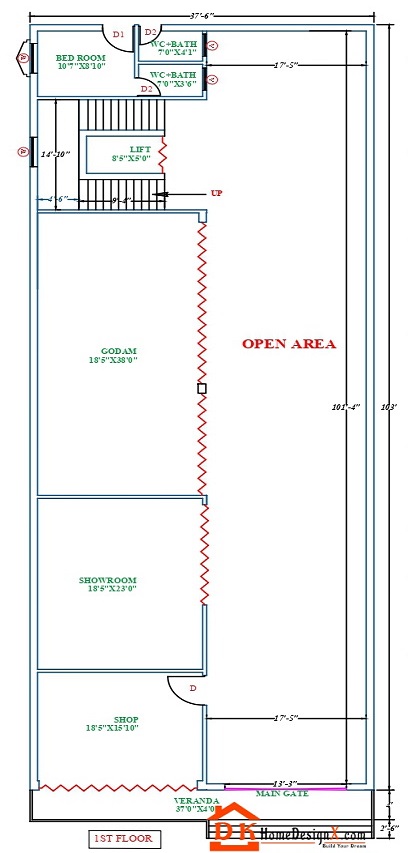

First  Floor

---

1 Bedroom | 1 Godown | 2 Showrooms/Shops |

---

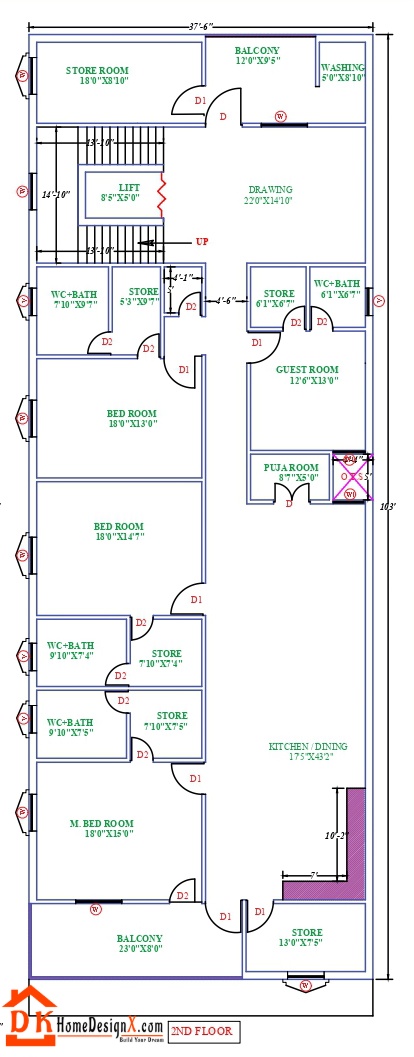

Secong  Floor

---

2 Bedroom | 1 Drawing/Living Room | 1 Dining Area | 1 Kitchen

---



What will you get in this package?

• 2D Floor Plan
• Column Layout & Foundation Details
• Tie Beam Layout & Reinforcement Details
• Roof Beam Layout & Reinforcement Details
• 2D Front View for Site Working
• Section View
• Stair, Slab Design and Rainforcemnet Details
