40X37 Affordable House Design

5,900.00

5 Bedrooms | Drawing/Living Room | Dinning Area |  Kitchen
1480 sq. ft. area
West Facing

SKU: TX153 Category:

This is a modern affordable house design which has a Build up area of  1480 sq. ft.
and West Facing House design.

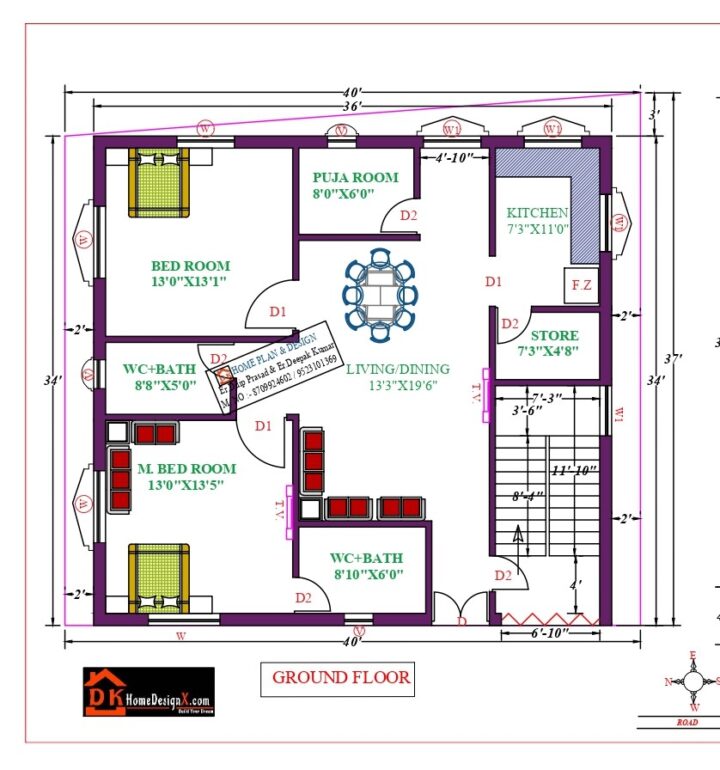

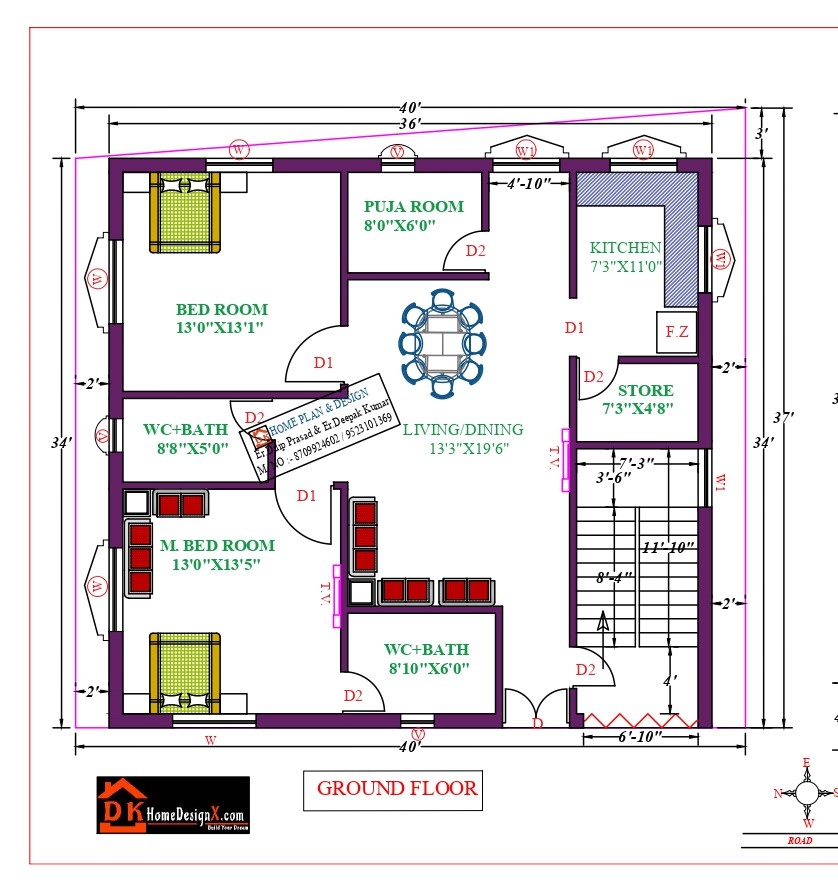

Ground Floor


2 Bedrooms | Drawing/Living Room| Dinning Area |  Kitchen

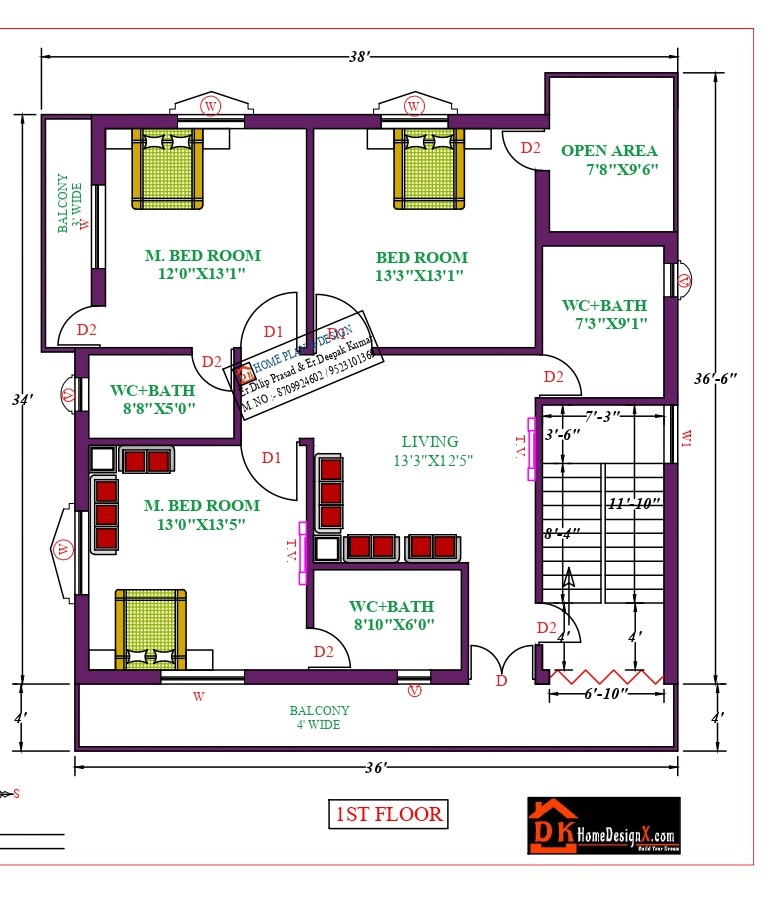

First Floor


3 Bedrooms | Drawing/Living Room|


What will you get in this package?

  • 2D Floor Plan
  • Column Layout & Foundation Details
  • Tie Beam Layout & Reinforcement Details
  • Roof Beam Layout & Reinforcement Details
  • 2D Front View for Site Working
  • Section View
  • Stair, Slab Design and Reinforcement Details
